Nickel 201 Pure

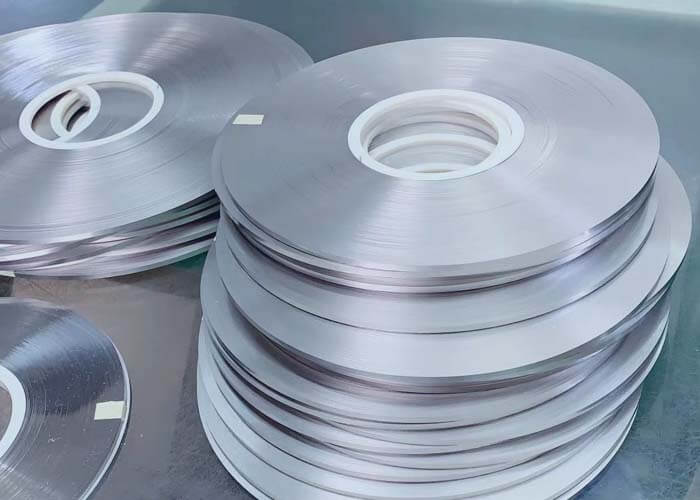

Pure nickel 201 strip with 0.15mm thickness is most widely used for various applications including battery 18650 pack spot welding industry.
As a leading China pure nickel strip foil for lithium battery supplier, HZW manufactures and produces different thickness and width of pure nickel strip foil.
Our pure nickel strips foils are produced strictly to the default ASTM standard.
0.15mm Nickel 201 Pure Nickel Strip for Battery 18650 3P Specifications
| Product Name | Ni201 Pure Nickel Strip Foil For Battery Pack Spot Welding |
| Grades | Pure Nickel |
| Hardness | Soft, 1/2 Hard, Hard |
| Thickness | 0.15mm |
| Width | 6mm/8mm/10mm/15mm/20mm, or as customers request |
| Edge | Slit/Deburred |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø 200mm, Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core on customer request |
| Surface Finish | The nickel alloy strip foil has a smooth surface, free from scratches and impurities |
| Applications | For 18650 Lithium Battery |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 15-20 working days |
| MOQ | 500 kgs |
| Shipping Port | Shanghai/Ningbo port |
| Sample | The sample of nickel alloy strip foil is available |
| Remark | Nickel alloy strip foil can be customized |
0.15mm Nickel 201 Pure Nickel Strip for Battery 18650 3P Chemical Compositions
| Alloy Grade | Chemical Composition(%) | ||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | |
| N4/Ni201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/Ni200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
0.15mm Nickel 201 Pure Nickel Strip for Battery 18650 3P Mechanical Properties
| Temper | UTS | 0.2% YS | Elongation | Rockwell B | Vickers Hardness |
| Annealed | 50-58 | 15-20 | 40-45 | ≤46 | 64-90 |
| Skin Hard | 52-65 | 20-45 | 30-40 | 64-70 | 110-126 |
| 1/4 Hard | 55-70 | 25-55 | 20-35 | 70-80 | 120-151 |
| 1/2 Hard | 60-80 | 50-75 | 15-25 | 79-86 | 148-171 |
| 3/4 Hard | 70-90 | 65-85 | 5-10 | 85-91 | 168-193 |
| Hard | 85-100 | 80-95 | 3-6 | ≥91 | 193-203 |
| Full Hard | 94-103 | 90-100 | 12 | ≥93 | >203 |
What are 0.15mm nickel 201 pure nickel strips for battery 18650?
Different like stainless steel strips, Ni201 is a kind of pure nickel, in which the content of Ni and Co is more than 99.9%, and the content of other impurities is not more than 0.5%. Its uses include ionic membrane caustic soda process and alkali production industry, chlor-alkali chemical industry, organic oxide production, food processing industry, high temperature halogen, salt corrosion environment, water treatment, etc.charging battery connection, ear, lead, intercepting, nickel metal hydride battery, lithium battery-electric tools, combination battery, polymer battery, power battery, electronics industry, laptop, mobile phone, wireless electric tools, electric moped, nickel metal hydride, nickel battery, instruments, telecommunications, electric vacuum, special light bulb.Pharmaceutical crucible, equipment in alkali industry production, connector, etc.
0.15mm nickel 201 pure nickel strips for battery features
- High corrosion resistance;
- Resistance to work in hostile environment;
- Stability in work at high temperatures;
- High strength;
- Durability;
What is the standard sea packaging of Ni201 pure nickel strip foil?
- Standard export sea packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
Eye to wall and eye to sky are both available; - By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
